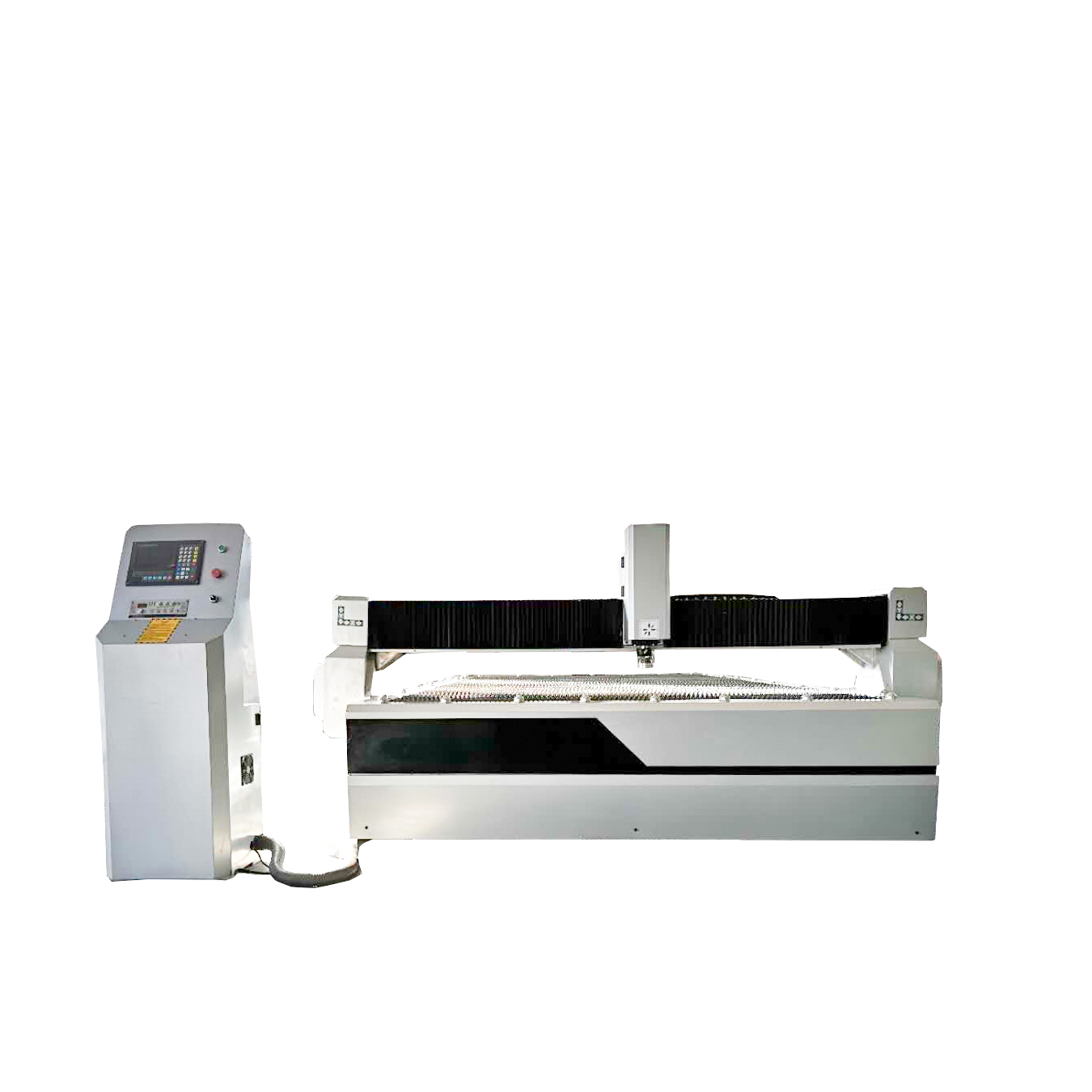

GS Plasma CNC Cutting Machine GS-1325P

inquiry

DATA
Characteristics

Model	GS-1325P
X,Y axis working area	1300×2500mm
Z Axis working area	200mm
Table size	1440×3000mm
Max.Moving speed	20m/min
Max.Cutting speed	18 m/min
Max.Cutting thickness	12 mm
Work Mode	Step motor
Guide way	Linear guide way(HIWIN)
Transmission	X Y helicak rack,Z imported ball screw
Control system	Start fire
Plasma Power Supply	100A (Huayuan)
Work Voltage	AC 380V 50Hz

◆Imported Linear Square Guideway, Double-line Four-row Slider, Undertake Heavy-duty, Stable operation, High precision, Long lifetime, cutting with high precision.

◆Chinese plasma power from Huayuan. Good quality for 12mm metal cutting.

◆High-speed drive a stepper motor and driver, Y axis using a dual-motor drive, to make high-speed operation up to 25 meters above the blank line speed, with the cutting spindle can greatly enhance the carving is even more.

◆THC plasma cutting torch with CNC controller works by USB,

◆Software: compatible with Type3/Artcam/Castmate / Ucancam a variety of CAD / CAM Design Software
